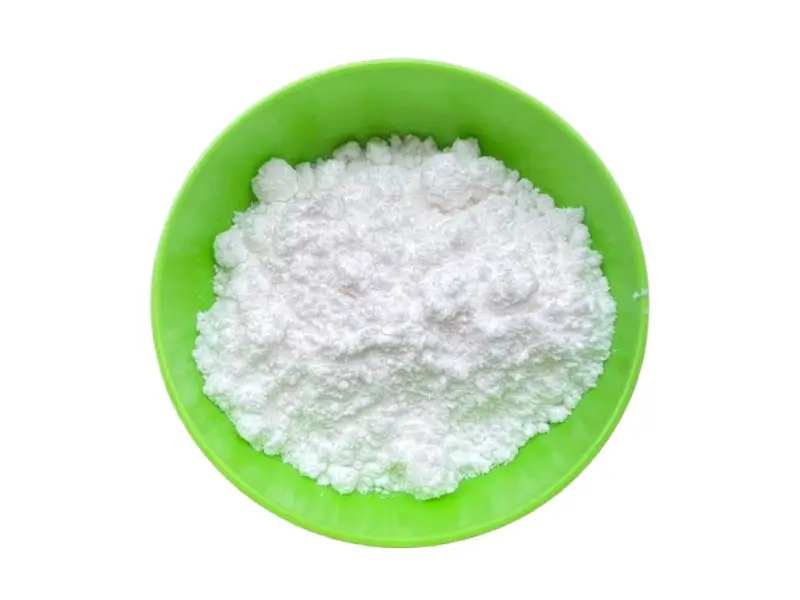

Feed grade water soluble nano zinc oxide powder
Model：VTC Z-150
Application of new nanomaterials
The ultra-high water-soluble nano-zinc oxide produced through a new process greatly improves the bioavailability of nano-zinc oxide. Compared with traditional zinc oxide, VTC Z-150 can effectively be utilized and quickly absorbed by animals, enhancing the health .
Mechanism for health improvement
Vital zinc oxide nanoparticles can promote cells to produce antioxidant reactions and increase superoxide
Dismutase SOD, glutathione peroxidase (GPx) and other antioxidant enzymes active.
Features of Water Soluble Nano Zinc Oxide Powder
• Cost effective
• Disease prevention and immunity support
• Working at low concentration to comply zinc content restriction
• 150,000ppm super high concentration powder with low transportation cost
• Use against various of fungi, bacteria and molds
• Long lasting efficacy
• pH=7 excellent compatibility with general animal feed and supplement
• Increase animal’s health by super effective contribution of zinc element
• Comply with ECHA REACH SVHC 242 restricted material list
Revolutionary Water Soluble Nano Zinc Oxide Powder
VTC Z-150 is effective in zinc contribution, anti-mildew and anti-fungi, mainly due to its unique physical and chemical properties, which can improve VTC Z 150 immunity of the animals and help to grow weight. It can also inhibit many kinds of bacteria, molds, and fungi without causing biological resistance.
Due to its stable nano particle size and very high water solubility, the bioavailability of zinc has been improved to the top level for animal’s health care and immunity support.
| Origin | Taiwan |
| Material | Nano zinc oxide |
| Carrier | Potassium Citrate |
| pH value | 7 |
| Concentration of zinc oxide | 150,000 ppm |
| Water solubility | Very high |
| Average particle size | 5.3nm |
| Appearance | White Powder |
| Packing | 20 KG / bag |
Application of water-soluble nano zinc oxide
Bioavailability
| Type | pH value | Bioavailability | Safety | Note |
| VTC Z-150 nano zinc oxide |
7 | High | High | Stable in nano scale, high water soluble, high compatibility as an additive |
| General zinc oxide | - | Very Low | High | Not water soluble |
| Yeast Zinc | - | High | High | Natural ingredient, expensive |
| Nano Zinc Liquid | 3-5 | Low-Medium | Medium | React with oxygen and convert to zinc oxide micro particle, normal performance, need high dosage |
| Zinc gluconate (Zinc ion) | <7 | Low-Medium | Medium | Need higher dosage |
| Zinc acetate (Zinc ion) |
<7 | Low-Medium | Medium | Need higher dosage |
| Zinc citrate (Zinc ion) |
<7 | Low-Medium | Medium | Need higher dosage |
| Zinc sulfate (Zinc ion) |
<7 | Low | Low | Has irritation |
Water Soluble nZnO- Aquaculture Usage Instruction
| VTC Z-150 (with tiny average particle size 5.3nm and high water soluble) |
normal nano zinc oxide | conventional zinc sources | NOTE： When adding VTC Z-150, it needs to be mixed and diluted with 5-10 liters of water, and then sprinkled into the pool at three points to make VTC Z-150 evenly dispersed in the pond. There are two ways for adding VTC Z-150. 1)Dose in feed 2)Dose in water It is normally based on pond size, cost budget and intensiveness of culture. |
|
| suggested zinc content in shrimp/fish feed | 1-3mg/kg | 15-30mg/kg | 100-300 mg/kg | |
| bioavailability | high | medium | low |
Water Soluble nZnO- Dealing PEDv
| Test 1 | |
| Test unit | Livestock Division of Taiwan Sugar Corporation |
| Test virus | Porcine epidemic diarrhea virus (PEDv) |
| Tested substance | with zinc content 45 PPM |
| Experimental animals | suckling piglets exposed to poison during lactation (body weight 3-5 Kg) |
| Number of tests | 11 infected pigs |
| Test process | Take 2 ml orally once a day until the symptoms of diarrhea stop |
| Test date | 2022/9/5~9/8 |
| Result：Five lactating piglets developed diarrhea and were confirmed to be infected with PEDv，the suckling piglets stopped to have diarrhea after 3days, and the treatment success rate was 100% | |
Water Soluble nZnO- Dealing PEDv
| Test 2 | |
| Test unit | Veterinary Research Institute |
| Test virus | Porcine epidemic diarrhea virus (PEDv) |
| Tested substance | with zinc content 45 PPM |
| Experimental animals | suckling piglets exposed to poison during lactation (body weight 8Kg) |
| Phenomenon | Weaned piglets had diarrhea and were treated with antibiotics for more than ten days, but the treatment was ineffective |
| Test process | Take 2 ml orally once a day until the symptoms of diarrhea stop |
| Test date | 2023/5/4~5/6 |
| Result：Six lactating piglets developed diarrhea and were confirmed to be infected with PEDv，the suckling piglets stopped to have diarrhea after 2days, the treatment success rate was 100% | |
Water Soluble nZnO- Chicken farm test
| Location | Taiwan chicken farm |
| Number of chickens | 38,000 each |
| Test date | 2023/DEC. to 2024/MAR |
| Concentration | 10ppm zinc |
| Test method | VTC Z-150 taken in by drinking water throughout the day, and the chickens were treated for 3 consecutive weeks. |
| Note : No other antibiotic or drugs used VTC Z-150 taken in by drinking water throughout the day, and the chickens were treated for 3 consecutive weeks. It is also recommended to spray VTC Z-150 through an atomizer to directly reduce the virus content, and administer it to the lungs through free breathing to improve the immunity of the chickens. |
|
Water Soluble nZnO- Chicken farm test
| Farm feeding results (Experimental group) with VITAL ZINC OXIDE |
Farm feeding results (blank group) | ||||||
| Date of entry: 2024.01.31 | Chicken release date: 2024.03.04 | Date of entry: 2023.12.01 | Chicken release date: 2024.01.02 | ||||
| Number of fledglings: | 38,000 | Dermatitis(%) | 0 | Number of fledglings: | 38,000 | Dermatitis(%) | 5 |
| Number of adult chickens caught: | 37,840 | Smelly breasts(%) | 0 | Number of adult chickens caught: | 37,670 | Smelly breasts(%) | 0 |
| Breeding rate (%): | 99.58% | Number of dead chickens on the truck | 96 | Breeding rate (%): | 99.13% | Number of dead chickens on the truck | 184 |
| Average feed intake per feather (KG): | 3.21 | Number of chickens removed before slaughter | 73 | Average feed intake per feather (KG): | 2.94 | Number of chickens removed before slaughter | 110 |
| Average weight (KG): | 2.29 | Average weight (KG): | 2.08 | ||||
| Production Index: | 506 | Production Index: | 454 | ||||
| After using VTC Z-150, the production index increases 11.4% from 454 to 506, more chickens survive. | |||||||
*Production index: It bases on the evaluation standards of number of days of raising, weight of caught chickens, feed efficiency, and growth rate. The higher the index,the more it is in line with commercial benefits
